Prerequisites

Before you start, make sure you have:
  • Admin access to your Activepieces platform
  • Admin access to your Microsoft Entra ID
  • SSO already configured (recommended): SAML with Microsoft Entra ID
  • Generated an API key from /platform/security/api-keys route in the Activepieces app

​
Configure SCIM Connection in Microsoft Entra ID

1

Open your Entra ID app

In Entra ID Admin Console, open your Activepieces application (created in first SSO step).
2

Navigate to provisioning

Click on provisioning tab in the left menu, In the center of the page there will be Create configuration section, click on Connect your application.
3

Add SCIM connection details

New provisioning configuration page show with a form:
  • Authentication method leave as deafult ( Bearer authentication )
  • Tenant URL to https://your-activepieces-domain/api/v1/scim/v2
  • Secret token to <generated-api-key>
4

Test the connector

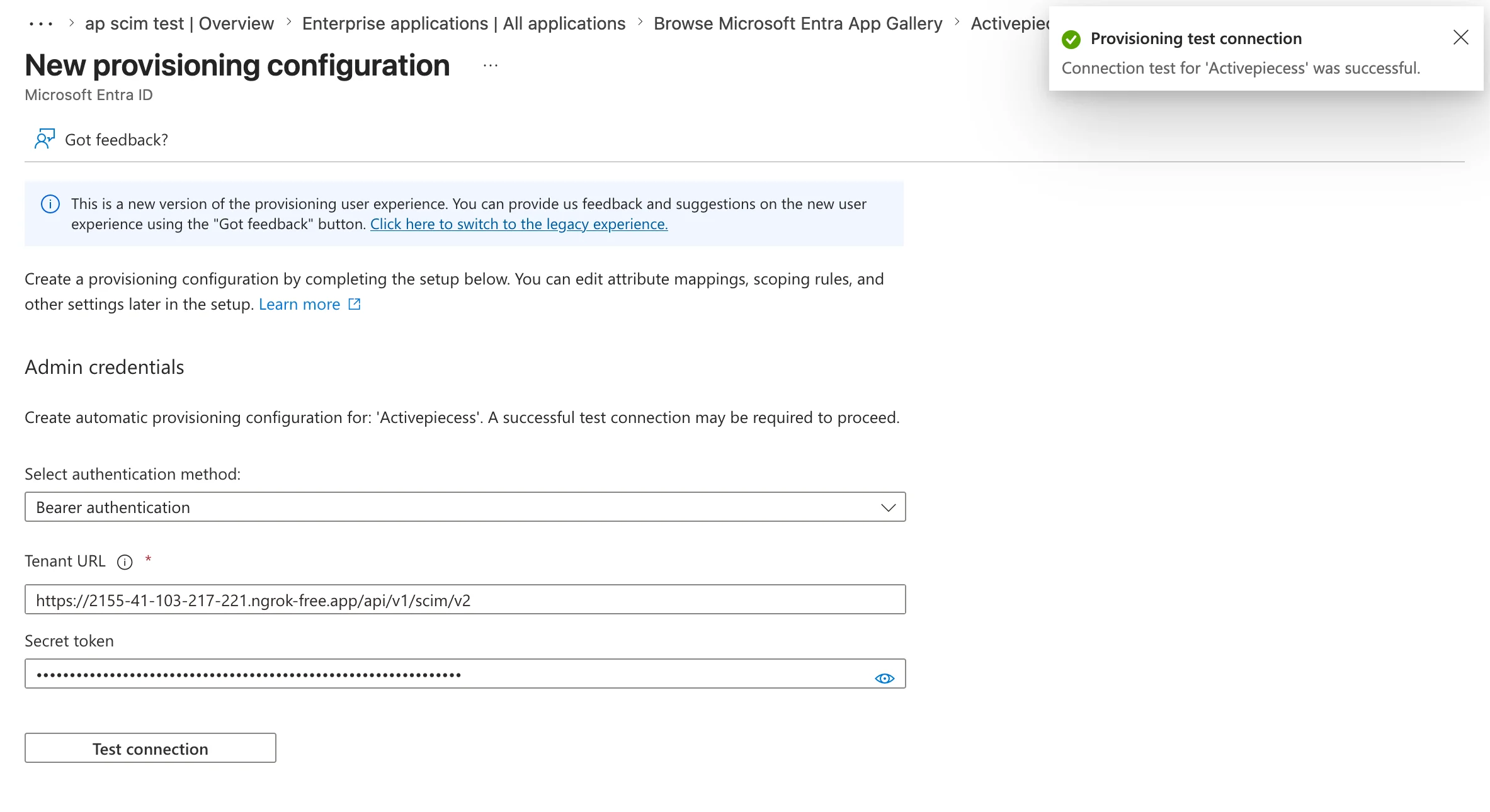

Click Test Connector Configuration and confirm the test passes.Entra ID Provisioning Config
5

Save the configuration

Finally, Save the configuration. after saving, you should get redirected to overview page.

​
Attributes mapping

Before you actually start provisioning, you need to map the attributes between Entra ID and Activepieces.
1

Go to attribute mapping

In the overview page, click on Attribute mapping in the left menu. then select Provision Microsoft Entra ID Users. It should show enabled switch and Target Object Actions should all be checked ( Create, Update, Delete )
2

Username mapping

First you need to map the userName attribute to the field that represent the email address. by default it’s mapped to userPrincipalName which is considered as an email address. but there’s also a mail attribute that represent the email address. so you should choose the one that represents the actuall email used by your users.
3

External Id mapping

Map the externalId ( Target attribute) to objectId ( Source attribute )
4

Platform Role (optional)

By default ( if you skip this ), the platform role of provisioned users will be set to Member. but it can be also mapped to entra ID fields.
1

Edit the attributes list

Scroll down to bottom of the page and check Show advanced options -> Edit attribute list for customappsso, A new page with attributes table will be opened.
2

Add a new attribute

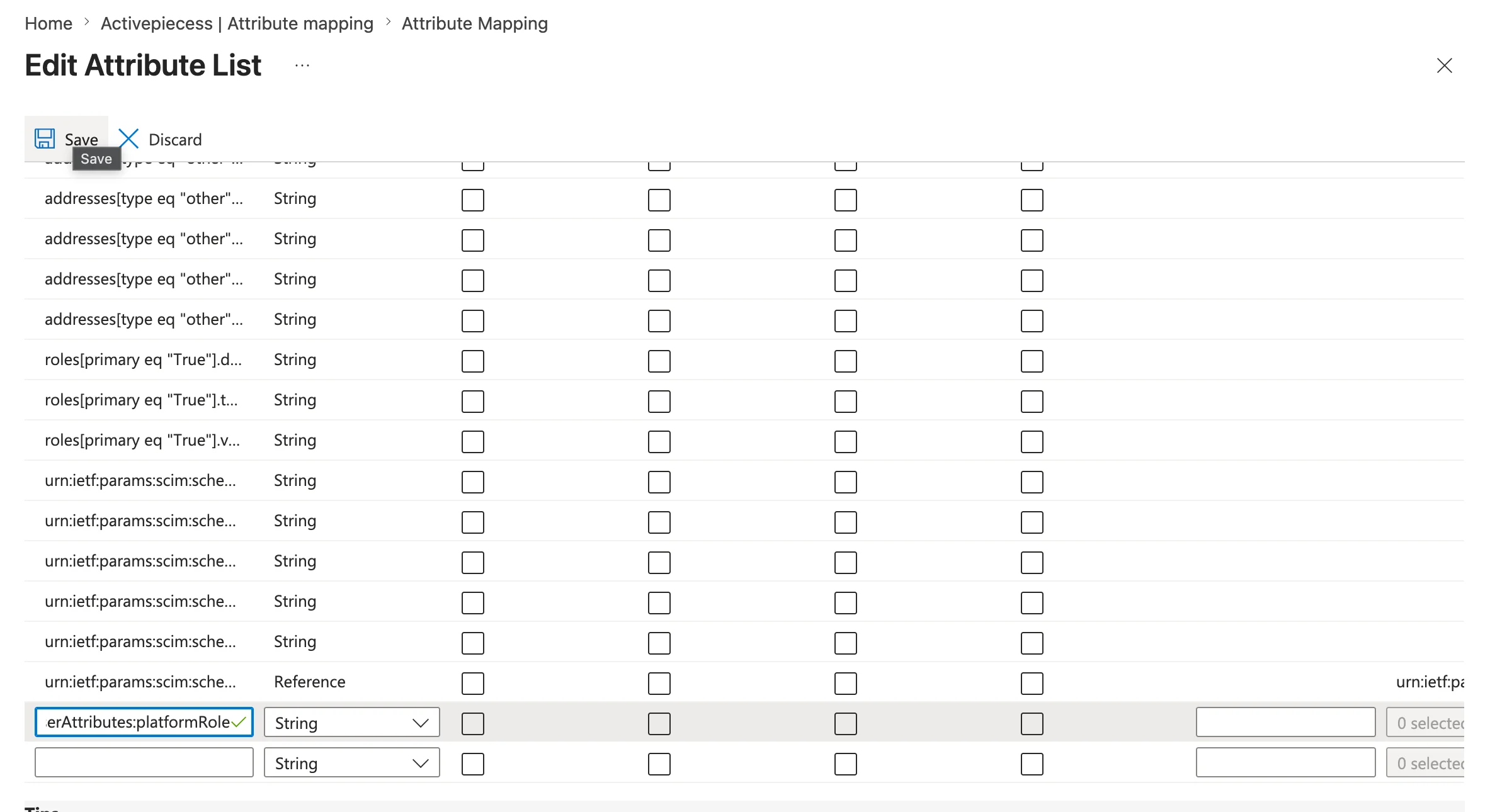

Scroll down to bottom of the table where there is a row with an input field, paste urn:ietf:params:scim:schemas:activepieces:1.0:CustomUserAttributes:platformRole and savePlatform role attribute
3

Add new mapping

  • After adding the attribute, you will be redirected back to the attribute mapping page. on the bottom of the table click Add new mapping, a form will be opened to map the attribute to the field that represents the platform role.
  • in the Target attribute field, select the attribute you just added (urn:ietf:params:scim:schemas:activepieces:1.0:CustomUserAttributes:platformRole)
  • Now the mapping is going to rely on how roles are represented in your entra ID. in Activepieces Platform role can be one of MEMBER, OPERATOR, ADMIN. this means that you need to map your entra ID role fields to these values.
  • if you already use a field ( which is probably not the case ) that has exactly these values, you can map it directly by selecting Mapping type to Direct and selecting the field from the Source attribute field.

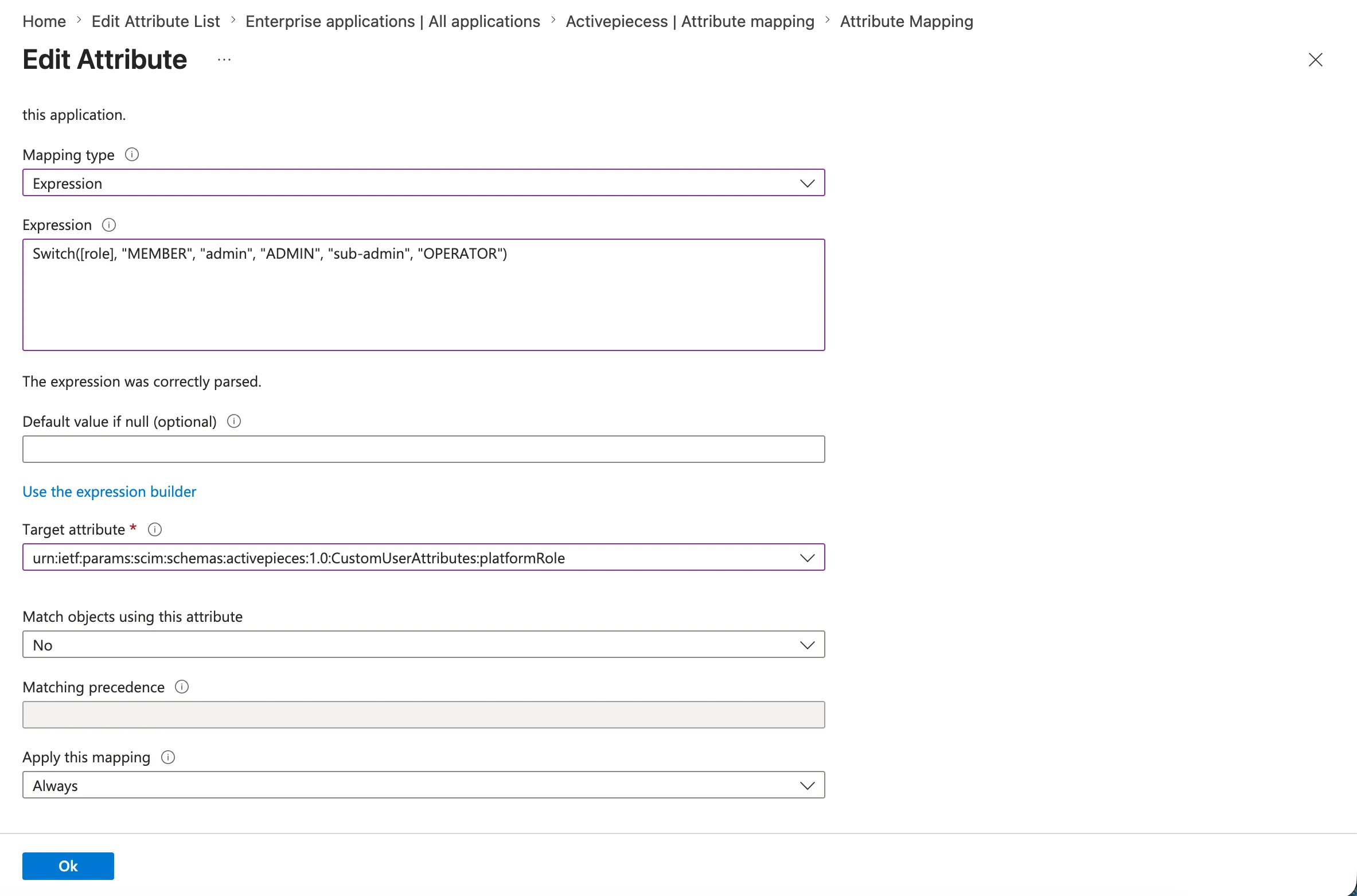

  • else, you can map it by selecting Mapping type to Expression and writing an expression that maps your entra ID field(s) to one of MEMBER, OPERATOR, ADMIN. see Expression mapping for more details. Platform role mapping
5

Save

Finally, click Save above the table and confirm.

​
Group provisioning

Groups are mapped to Activepieces projects. Members of the groups in entra ID will be added as members of the project in Activepieces. The name of the group will also be the display name of the project. By default, all group memebers will have Editor role for the project. for now this can’t be mapped like platform role. for self hosted customers they can change the env var SCIM_DEFAULT_PROJECT_ROLE to Admin or Viewer.

​
Users and groups assignments

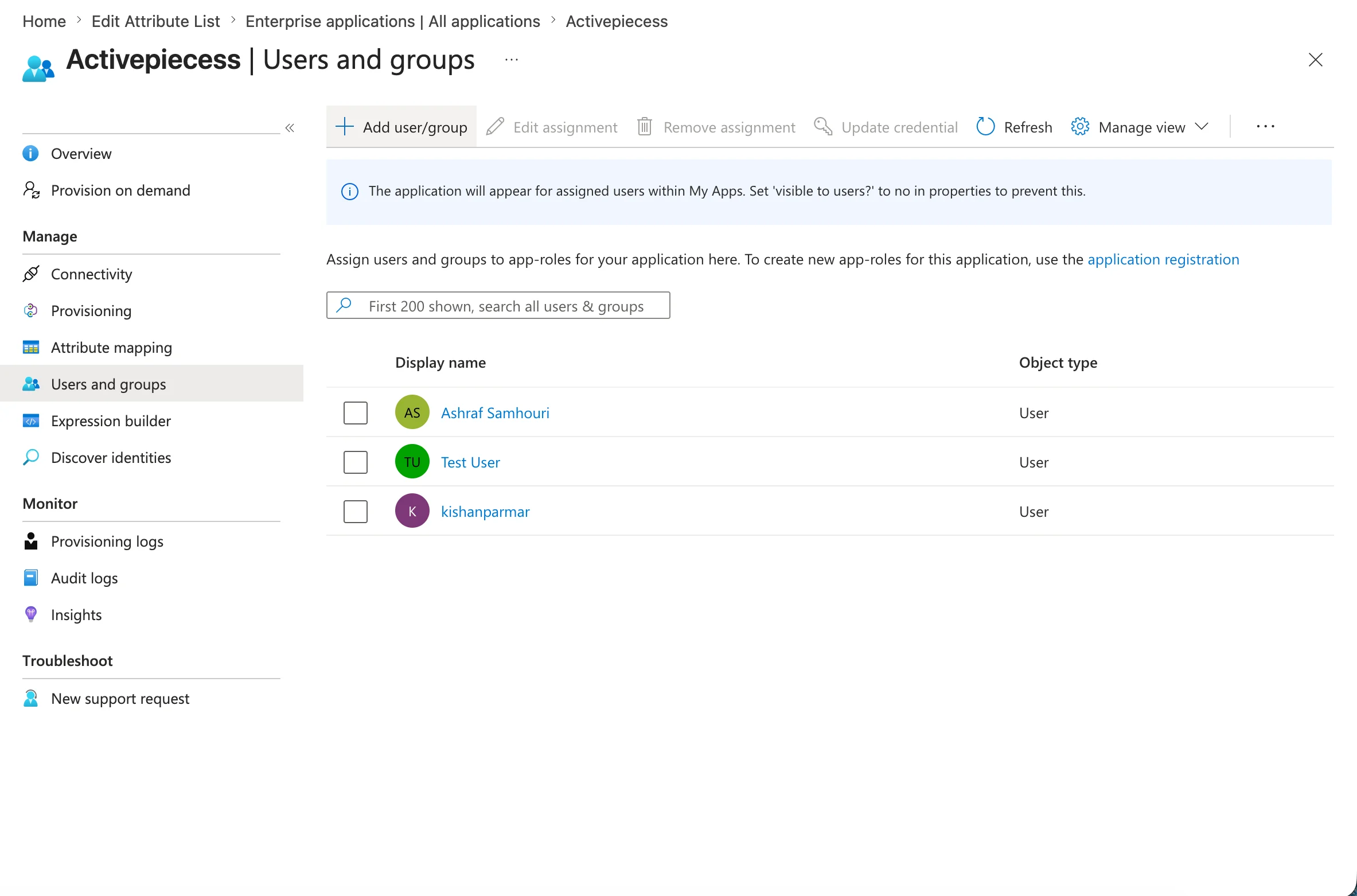

Assignments will allow you to select which users and groups that will be provisioned to Activepieces. Assignments

​
Starting provisioning

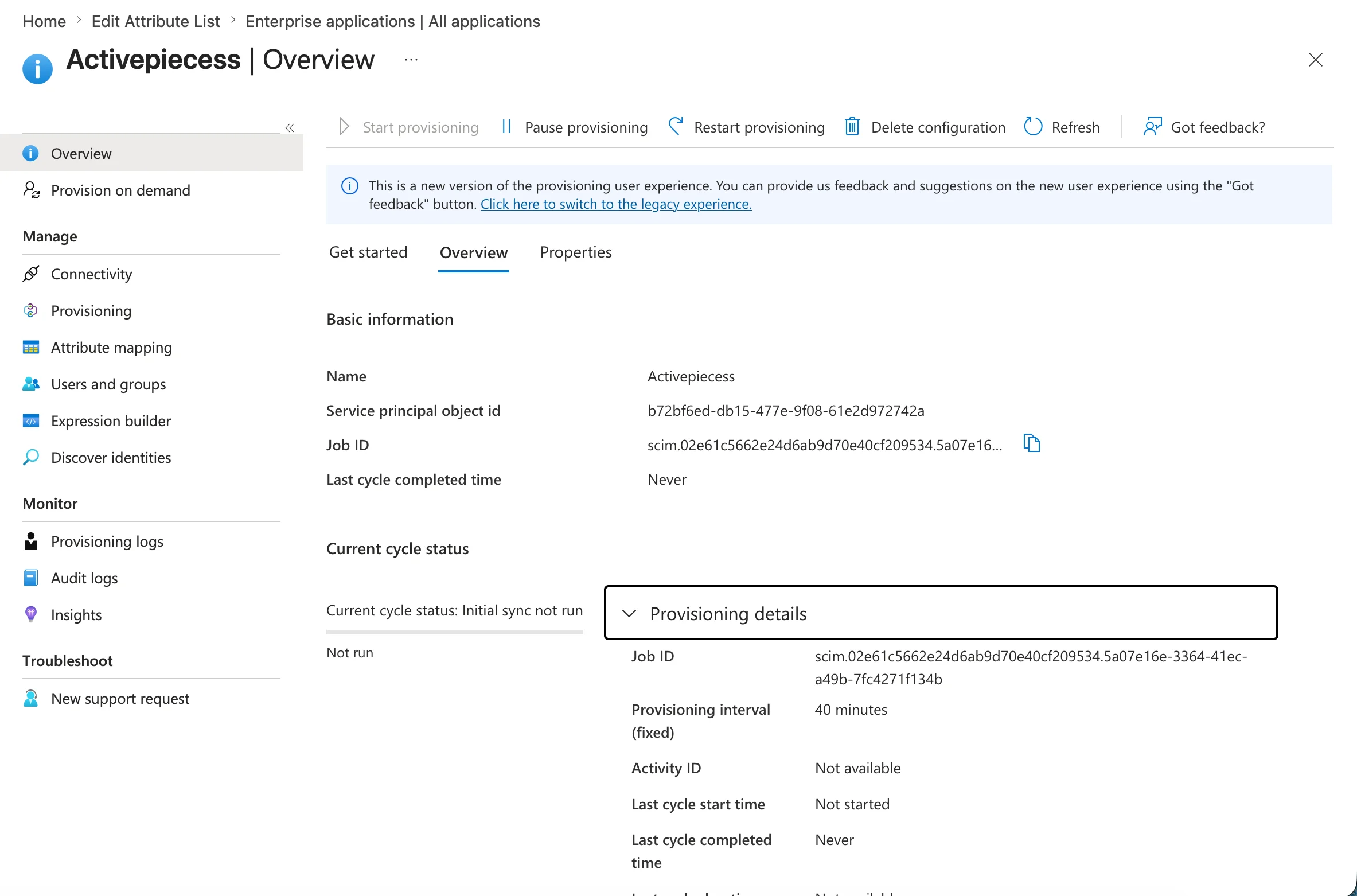

Back at the overview page, click Start provisioning to enable it. it will happen automatically and periodically. Start provisioning Provision on demand can be used to trigger a one-time provisioning of any selected users and groups.
